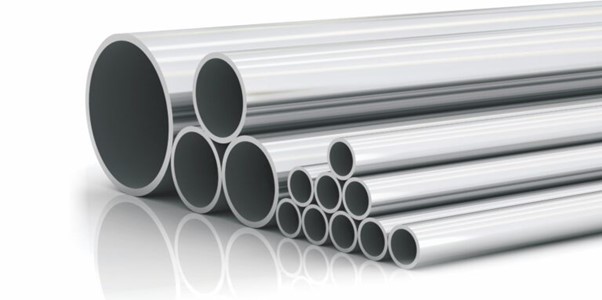

SS, DSS, SDSS, NI Alloy Pipes

Seamless Pipe as per ASTM A790, ASTM A312, ASTM B423, ASTM B444.
Welded Pipe as per ASTM A312, ASTM A358, ASTM A790, ASTM A928, ASTM B474, ASTM B705
We are specialized with Exotic Alloys like UNS No 8800, UNS No 8028, UNS No8825, UNS No 31254, Monel 400, UNS No 6600, UNS No 6625, EN 1.4306, EN 1.4835, EN 1.4435, EN 1.4335 NDT Testing as per client requirements such as UT, Eddy current, FRT, DRT, PT, etc
In compliance with IOGP Standards.

Materials	Grades
Austenitic Stainless Steel	TP 304/304L, EN 1.4031/1.4307, EN 1.4306, TP 304H, TP 310S, EN 1.4845, TP 316/316L, EN 1.4401/1.4404, TP 316Ti, EN 1.4571, TP 317/L, EN 1.4438, TP 321/321H, EN 1.4541, TP 347/H, EN 1.4550/1.4551, TP 904L, EN 1.4539, UNS 31254, TP 405, TP 409, TP 410.
Ferritic Steel Duplex Stainless Steel	UNS 31803/32205 (EN 1.4462), UNS 32750 (EN 1.4410), UNS 32760 (EN 1.4501), UNS 31500
Nickel Alloys	UNS N08020, UNS N08028, UNS N04400, UNS N06600, UNS N06625, UNS N08800, UNS N08825
Special Grade	EN 1.4835, 1.4435, EN 1.4335, UNS No. S31050, 316L UG
Outside Diameter	1/8″ NB to 12″ NB (10.30 mm to 323.90mm)
Wall Thickness Range	SCH 5S to SCH XXS (1.24mm to 25.40mm)
Length	Up to 12 Meter of Fixed/Random/Double Random Lengths
Specification	ASTM A-312, A-790
Standards	ASTM/ASME/EN/DIN also available

Mail Us WhatsApp Us

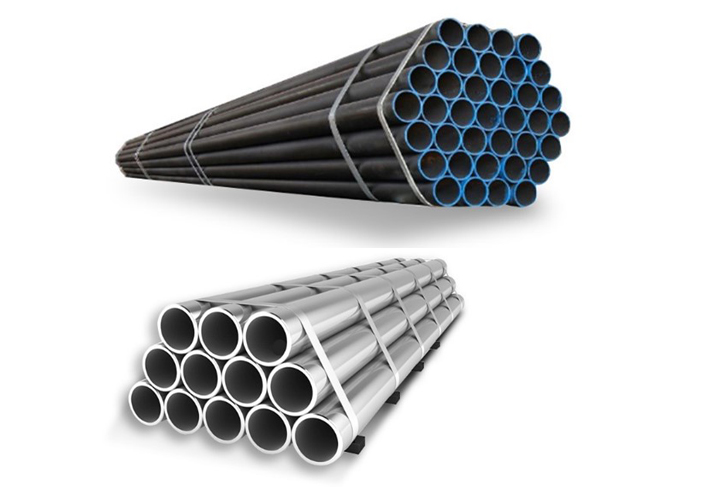

Carbon Steel Pipping

Carbon steel pipe is the most commonly used piping material in different industries, serving construction, structural, and liquid transmissions for water, oil, and gas.
Typical carbon steel pipe material grades include API 5L Grade B, X42 to X70, ASTM A106 B, ASTM A53 B, ASTM A252 Grade 3, and ASTM A333 Grade 6.
Gemini offers various types of carbon steel pipes, including seamless and welded (ERW, EFW, LSAW, SSAW) steel pipes for the mining industries.

Materials	Grades
Standards	ASTM A53 B, ASTM A106 Gr. B, ASTM A179, ASTM A192, ASTM A333, and API 5L Gr B to X70
Sizes	Outer diameters from 1/2” to 60”, thickness from sch10 to sch 160, 2mm to 45mm
Coatings	Depending on client requests, 3PE, FBE, Zinc Coating will be applied. More coating materials like Solid CRA, Clad, or Lined alloy steel are available.

Mail Us WhatsApp Us

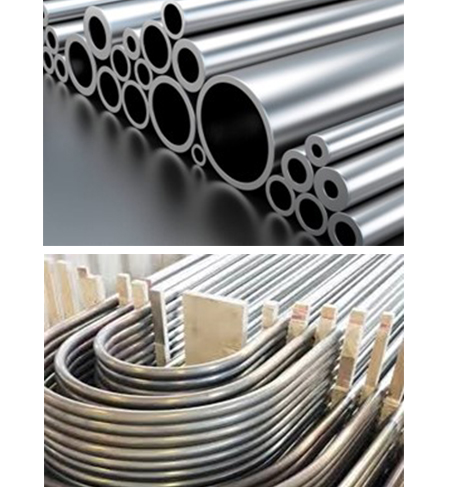

Heat-exchanger tubes are used for shell & tube heat exchangers, plate & frame heat exchangers, cooling towers, air coolers, and others.
The main industries for heat-exchangers involve several critical applications that require high corrosion resistance materials and adherence to the highest quality standards.
Some of these applications include condensers, coolers, evaporators, heaters in refinery, petrochemical, chemical, oil/gas, organic and inorganic acids, hydrometallurgy, power generation, and desalination.

Materials	Grades
Austenitic Stainless Steel	TP 304/304L, EN 1.4031/1.4307, EN 1.4306, TP 304H, TP 310S, EN 1.4845, TP 316/316L, EN 1.4401/1.4404, TP 316Ti, EN 1.4571, TP 317/L, EN 1.4438, TP 321/321H, EN 1.4541, TP 347/H, EN 1.4550/1.4551, TP 904L, EN 1.4539, UNS 31254, TP 405, TP 409, TP 410.
Ferritic Steel Duplex Stainless Steel	UNS 31803/32205 (EN 1.4462), UNS 32750 (EN 1.4410), UNS 32760 (EN 1.4501), UNS 31500
Nickel Alloys	UNS N08020, UNS N08028, UNS N04400, UNS N06600, UNS N06625, UNS N08800, UNS N08825
Special Grade	EN 1.4835, 1.4435, EN 1.4335, UNS No. S31050, 316L UG
Outside Diameter	9.53 mm to 50.80 mm for U tubes Outside Diameter: 6 mm to 101.6 mm for tubes
Wall Thickness Range	0.89 mm to 5.00 mm for U tubes Wall Thickness: 0.6 mm to 8.00 mm for Tubes
Length	As per Customer's Drawing, Developed length up to 14 Meter
Specification	ASTM A213, A269, A-789, A 790 ASME SA213, SA269, SA-789, SA 790, SB 163 / SB 165 / SB 423/ SB 444 / SB 729 / SB 829, EN 10216-5 (TC1 / TC2) / EN 1127 / EN 10297-2 / DIN 2391, TEMA RCB 2.31 / DIN 28179
Standards	ASTM/ASME/EN/DIN also available
