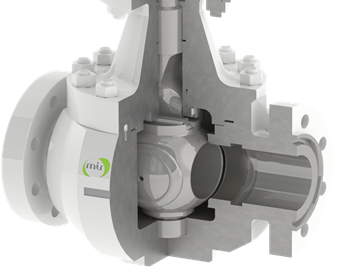

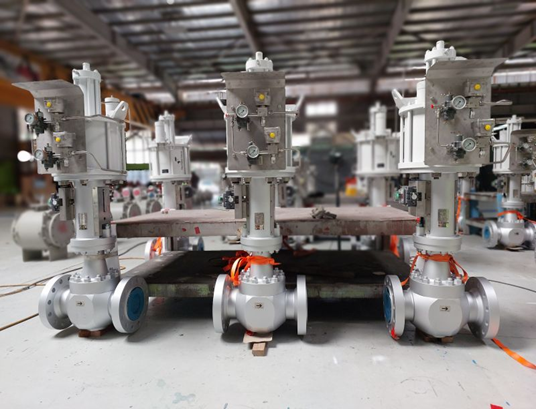

RSBV- Raising Stem Ball Valve

• RSBV Known as non-contact ball valve, in molecular sieve service referred to as switching or sequencing ball valve, the Rising Stem Ball Valve (RSBV) is used where mechanically-energized metal-to-metal sealing is required, namely in downstream applications such as high frequency cycling and in severe service.
• MIR RSBV has a helix stem that opens and closes the valve without stem rotation; a 100% linear movement making it the perfect choice for frequent switching and low-emissions strict compliance requirements.
• Plants - Refinery, Petrochemical, GAS processing, PRE - LNG plants, fertilizer plants.
• Applications- CO2 Re- injection and removal, Lethal sour Gas, Steam (+600'C), Hot oil, Cryogenic ( -196'C), emergency BDV/SDV, Gas Dehydration/ Molecular sieve
• Key Feature- Top entry, single seat design, anti-blowout stem, friction free opening and closing ON/OFF cycles, Self -cleaning when moving from close to open, Low torque operation, Ball and seat metal to metal with satellite overlay, mechanically energized sealing by the helix stem, UNI/ BI directional
• Design standard - API 6D/ISO 14313, API 6DSS/ISO 14723 FOR SUBSEA, API 6A / ISO 10423, API 17D 13628-4 FOR SUBSEA CUSTOMER SPECIFICATIONS (SHELL, TOTAL, EXXONMOBIL AND OTHER CUSTOMER SPECS

Technical Features

• Size: 1" - 24" FB/RB; other sizes on request
• Pressure: ANSI CL. 150 - 2500
• Connections: RF, RTJ, WE, Hub ends, compact
• Materials: CS, SS, DSS, SDSS, Nitronic, Nickel alloy, Inconel, Monel, Titanium
• Temperature: -196⁰C to +600⁰C
• Design: API 6D, ASME B16.34, API 600
• Face-to-face: API 6D, ASME 16.10, B 16.47
• Ends & Flanges: ASME B16.5, B16.25
• Topworks: ISO 5210, ISO 5211
• Firesafe: ISO 10497, API 6FA
• Fugitive emissions: ISO 15848, MESC 77/312
• Safety Integrity Level: SIL
• Testing: API 598
• Leakage criteria: 598, BS 6755, ISO 5208, ANSI FCI-70-2, Class V or VI
